The CineTreak CR02 is an advanced PTZ camera control keyboard designed for broadcast production, live events, conference rooms, and educational recording. It combines intuitive physical control, powerful device management, and flexible system integration into one unit, delivering an efficient and reliable all-in-one control solution for camera operators and technical directors.
At the heart of the CR02 is its ergonomic control panel. The 4D precision joystick provides smooth pan/tilt control, with an integrated knob for precise zoom operation. Three dedicated 3D knobs and button zones allow for quick adjustments of key image parameters like white balance, exposure (iris, shutter, gain), and focus—all without navigating deep menus, significantly boosting on-set efficiency.
The device includes a built-in 3-inch LCD color screen for real-time video preview of the currently controlled camera (supports NDI HX2 and RTSP streams), providing confidence during operation. Simultaneously, its HDMI output port can transmit the camera feed with no delay to an external large-format monitor, supporting resolutions up to 4K@30fps for professional monitoring needs.
The CR02 supports industry-standard control protocols including VISCA (serial/IP/TCP), PELCO-D/P, ONVIF, and NDI, with automatic protocol recognition to simplify setup. Via its network port (supports PoE), it can manage up to 1000 network cameras and allows one-touch camera switching through 7 programmable shortcut keys. The newly upgraded WEB backend management system enables comprehensive remote configuration and management of the keyboard from a computer browser.

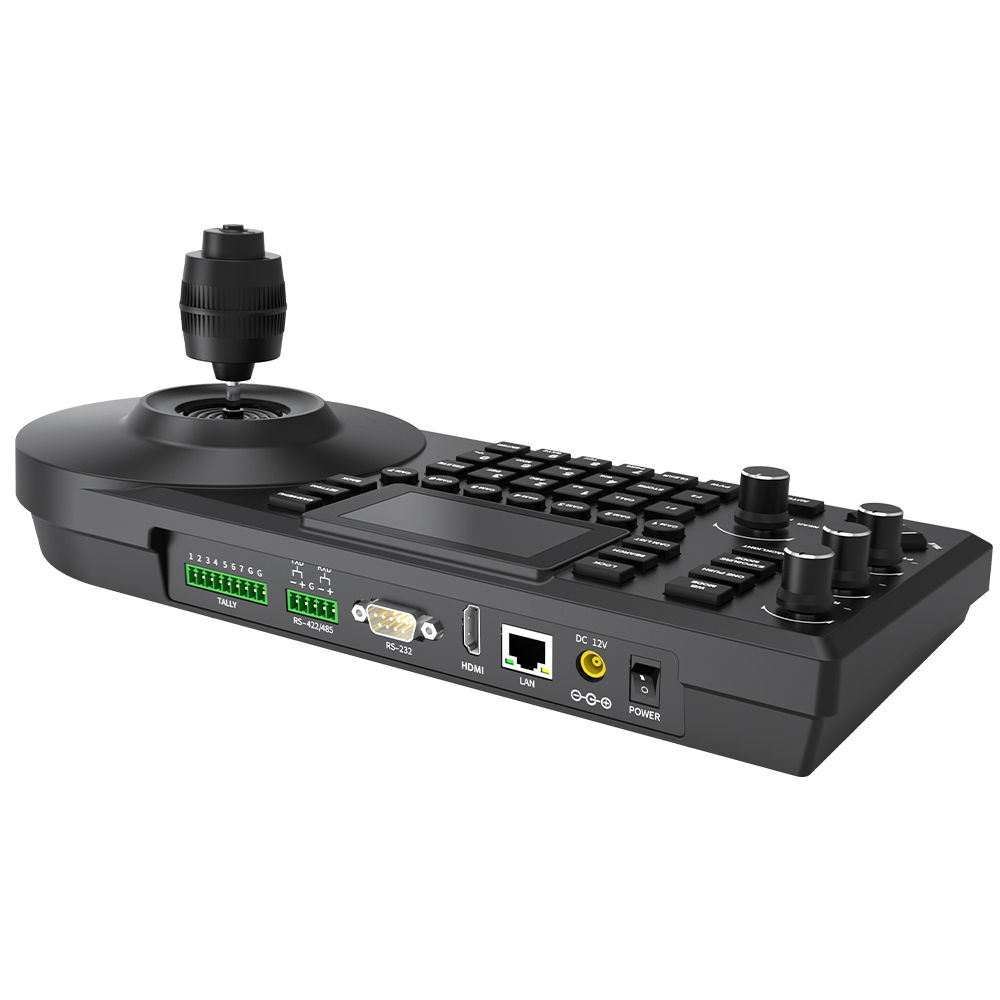

The unit is equipped with RS-232, RS-422/485 serial ports, and an RJ45 network interface, offering excellent connectivity flexibility. It supports tally signal transmission/reception and camera linkage for up to 7 channels, seamlessly integrating into live production systems. The white and red dual-color backlit silicone buttons ensure clear visibility under any lighting condition and support text input for naming cameras. A one-touch lock function effectively prevents on-site misoperation.
Whether controlling a single high-end PTZ camera or managing a large multi-camera system, the CineTreak CR02, with its reliable, flexible, and intuitive design, is poised to become the indispensable control hub for your production team.
